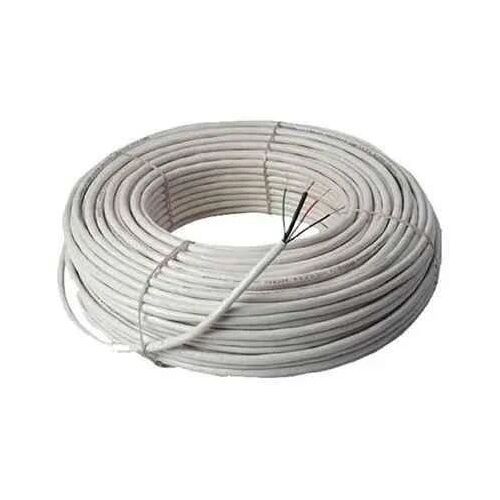

| CCTV cable | |
| Color & Material of Outer Sheath | FR PVC_White (IEC 60332-1) |
| Cable Diameter (Oval) | 5.8+ /- 0.4mm |
| Jacket Thickness | 0.75+/ – 0.2mm |
| COAXIAL Cable | |
| Inner Conductor | Copper |
| No. of Conductors | 1 |
| Dielectric | Solid PE |
| Color | Natural |
| Diameter | 0.51 +/- 0.03 mm |
| Thickness | 1.42+/- 0.2mm |
| Shield | 6mm (Aluminum Myler tape) |
| Shield – Braiding | Aluminum Alloy Braiding |
| Dia. of Braid Wire | 0.11 +/- 0.02mm |
| No. of Braiding Wires | 48 |
| Coax jacket | PVC Type ST1 |
| Colour | Black |
| Thickness | 0.45 +/ – 0.02mm |
| III) Insulated Cores | Type A |
| Core Colour | Red, Yellow, Grey |
| CONDUCTOR | |
| No. of Strands | 14 |
| Strand Diameter | 0.1+/- 0.02 mm |
| Insulation | PVC Type A |
| Thickness (Average) | 0.50 +/- 0.2mm |
| Diameter (Average) | 1.42+/- 0.2mm |
