| Parameter | Multi Door (4) Control Panel |
| Model # | ACB-004 |
| Communication | TCP/IP 10M/100M adaptive |
| Description | Control 4 doors, get in the door by swiping the card, and get out the door by button |
| Size of PCB board | 160mm*106mm |
| Size of Case | 273mm*228mm*65mm |
| Power Supply | 12VDC 4-7A |
| Power Consumption of Circuit Board | Less than 100mA |
| Input Format of Reader | Wiegand 26 (All card reader with compatible protocol, such as Motorola, HID, EM, Mifare one, etc) |
| Quantity of Readers | 4 pcs |
| Door Controlled | 4 doors |
| Door opening time extending setting | 1-600 seconds(adjustable) |
| Max q ‘ ty of controller | No limit |
| Operation Temperature | -40℃~70℃ |
| Operation Humidity | 10-90 ％ RH ， No Condensation |
| Q ‘ ty of users | 20,000 Users |
| Q ‘ ty of Event Buffers(offline) | 100,000 event buffers |
| Power interruption protection measure | High-Speed Memory, Records never lose |
| Max Distance from Reader to Controller | 100m (suggestion distance 80m) |
| Max Distance between Controllers | TCP/IP: Depends on net coverage area |
| Package included: | PCB board, software, manual, certificate. carton |
| Alarm for long time door open, illegal break-in, intimidate | Yes |
| Fire and alarm linkage | If no connection with the expansion board, only has a software interface alarm and drives the computer speaker. If connected with an expansion board, is able to alarm by hardware, if connected with a strengthened expansion board, then is able to Security alarm, Model is ACB-EA05 |
| A Compulsive open and close door at a long time | Yes |
| Open door in the remote distance | Yes |
| Interlock | Yes |
| Anti pass back and tail | Yes |
| Multi-card open door | Yes |
| Open a long time at a specified time | Yes |
| Electronic map | Yes |
| Urgency locking | Yes |
| First card unlocking | Yes |
| Unlock based on internal and external validation | Yes |
| Keypad (card+passwor, supper password) | Yes |
Door Interlocking System

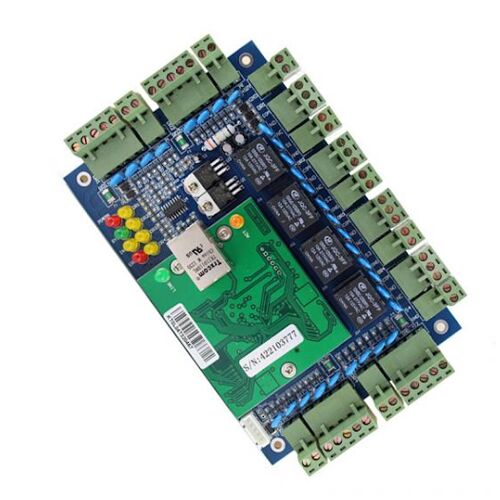

4 DOOR ACB CONTROLLER
- Parameter : Multi Door (4) Control Panel
- Model # : ACB-004
- Communication : TCP/IP 10M/100M adaptive
- Description : Control 4 doors, get in the door by swiping the card, and get out the door by button
