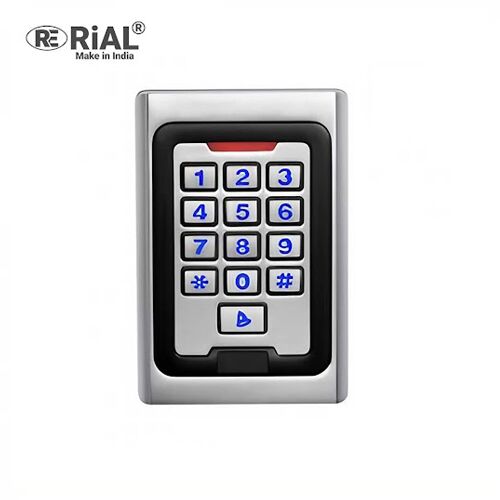

Advantageous for Metal Standalone Access control kit
> Perfect design, with backlight and fashion silver finish.
> Waterproof design for outdoor use.
> A strong standalone function device can be used as a WG26 reader alone.
> Capacity: 2000 user’s cards, 2000 codes.
> Access ways: cards, code, card+code.
> Low power: static current less than 30mA
> Support the keypad.
> Users can reset private passwords.
> Search fast less than 0.1S.
> Wiegand output W26 for card and w4 for codes.
> Use the keypad to delete lost cards for safety.
> Short-circuit protect: when relay or alarm output short circuit, it will shut up output in 100μS.
| Card type | EM or MF |
| Waterproof degree | IP68 |
| User capacity | 2000 card user card, 2000 user password |
| Environment Humidity | 10%～90% |
| Lock output | ≤3A |
| Working voltage | DC12V±10％ |
| Static electricity | ≤30mA |
| Alarm output | ≤20A |
| Output short circuit protection time | ≤100μS |
| Card read distance | 5～8cm |
| Ambient temperature | -45℃～60℃ |
| Door Opening Time | 0～99s(Adjustable) |
| Dimension | 120*80*25mm |
