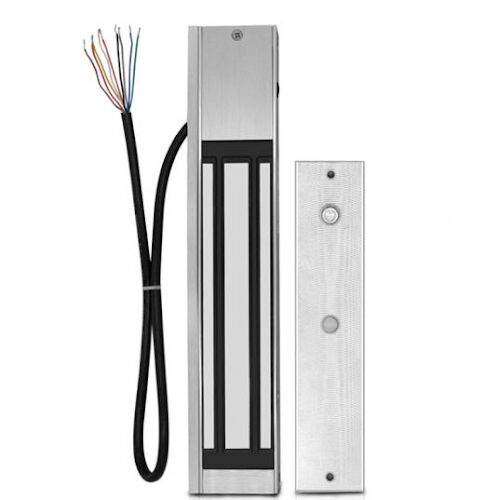

600LBS EM LOCK 5W

  • Lock size : 250Lx48.5Wx25H(mm)
  • Plate : 180Lx38Wx11H(mm)
  • Holding Force : 280kg (600Lbs)
  • Voltage : DC12V or DC24V (adjustable)
Category:



Lock size 250Lx48.5Wx25H(mm)
Plate 180Lx38Wx11H(mm)
Holding Force 280kg (600Lbs)
Voltage DC12V or DC24V (adjustable)
Current Draw 12V/500mA 24V/250mA
Signal Output Dry Contact, Max Rating of Contact Current 3A
Surface Temp ≤20°C
Operating Temp -10°C ~ 55°C (14°F~131°F)
Suitable Humidity 0~90%(non-condensing)
Finishes for Shell Anodized aluminum surface texture processing
Finishes for Magnetic Zinc
Finishes for Armature Zinc
Weight 2kg
